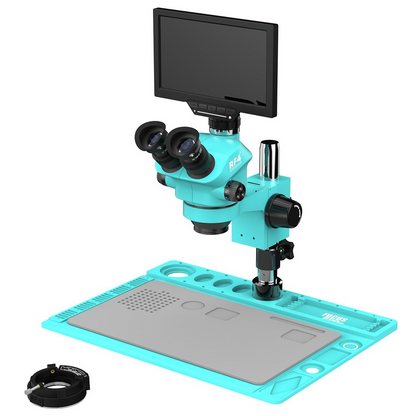

Microscope with Monitor RF4 RF7050TVD2-YS010W

Name: Microscope with Monitor RF4 RF7050TVD2-YS010W
Brand: RF4
SKU: 384711
Price: 680.14 EUR
Availability: InStock

ID: 384711

€680,14

Taxes included. Shipping calculated at checkout.

Warranty: 12 months

Low stock

Quantity

Delivery on time guaranteed

Receive your order on time with the help of our efficient and reliable delivery services.

Expert support team

From product questions to after-sales support, our team of specialists is here to help.

Return the product

If you are not completely satisfied with your purchase, please contact our customer service team. See more

View full details

Presentation

Product range	RF7050TVD2-YS010W
Product type	Microscope

Sale package

Pack	Blister
Content	Accessories / Led Lamp / Microscope / Monitor
Product status	New

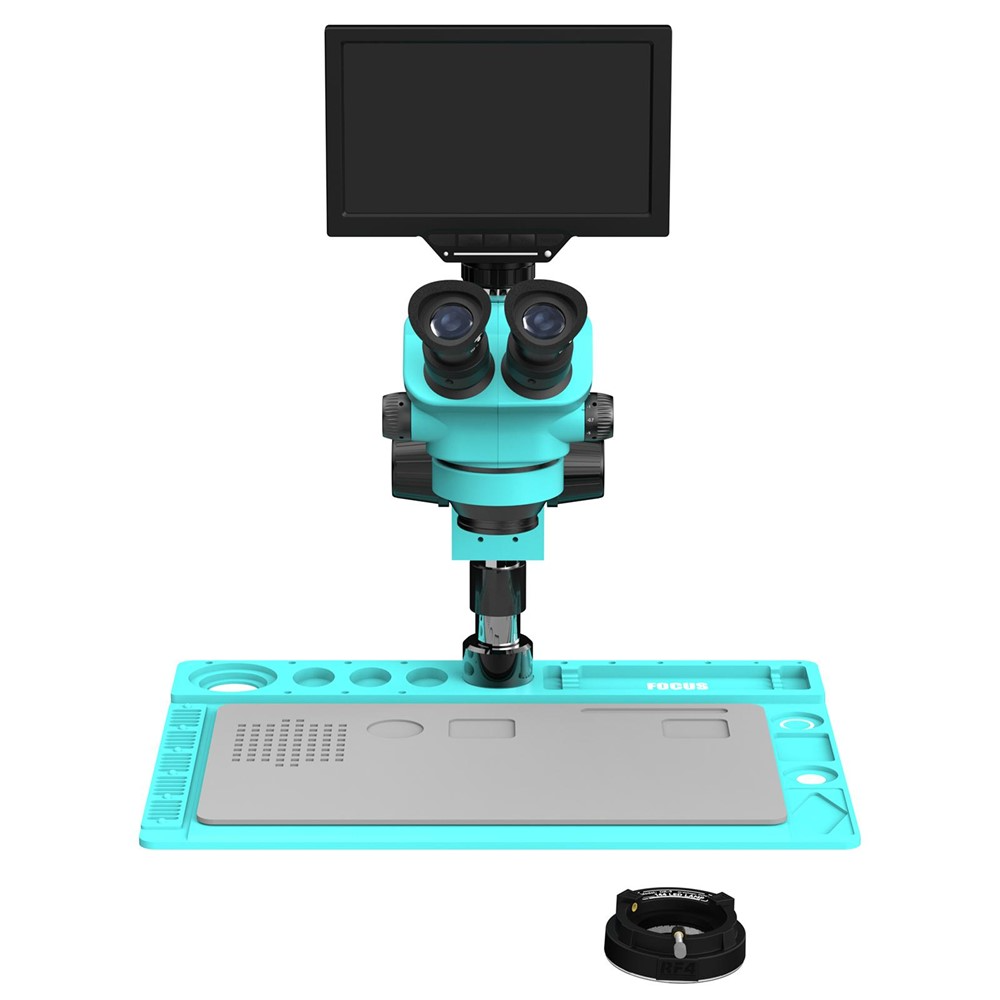

RF4 RF7050TVD2-YS010W Microscope with Monitor

The RF4 RF7050TVD2-YS010W microscope with monitor provides you with a complete professional solution for detailed inspection of motherboards

and performing micro-soldering operations at the IC chip level. Equipped with a trinocular head tilted at 45 degrees and rotatable 360 degrees,

the system offers continuous mechanical zoom between 7x and 50x, supported by WF10X/22mm eyepieces with diopter adjustment and a wide field of view.

The package includes a 10-inch IPS monitor with HD resolution, 400cd/m2 brightness, and a 1300:1 contrast ratio,

allowing you to simultaneously view and control every intervention on a clear and well-lit screen.

microscop-cu-monitor-rf4-rf7050tvd2-ys010w-

Optical Performance and Ergonomic Workstation

The system integrates a 1/2 CTV metal and chromatic copper adapter that allows focal and zoom synchronization between the eyepieces and the digital screen.

The solid aluminum alloy base, measuring 410 x 300 mm, includes a 330 x 198 mm silicone pad for tool protection

and thermal insulation, supported by a 240 mm guide column. The ring lamp with 144 adjustable LEDs guarantees

strong and shadow-free illumination across the entire work surface, ensuring the visual comfort

needed during long refurbishment sessions.

Features:

- Magnification factor: continuous zoom 7x - 50x (objective 0.7x - 5.0x)

- Eyepieces: WF10X/22mm with diopter adjustment and wide field of view

- Monitor: 10-inch IPS screen (model YS101W), resolution 1280 x 800, HD inputs

- Camera adapter: 1/2 CTV metal with focal synchronization

- Lighting: ring lamp with 144 LEDs and adjustable intensity

- Stand and base: aluminum base 410 x 300 mm with silicone pad and 240 mm column

- Usage: PCB circuit soldering, BGA component inspection, phone repairs, and micro-soldering

Package contents:

- Microscope

- Accessories

- LED Lamp

- Monitor
